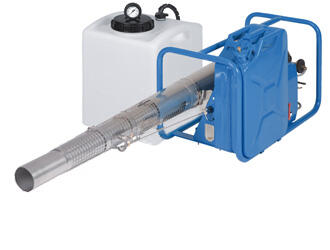

pulsFOG K-22-10-STD stationary thermal fogger // small frame

for water-based product application

empty weight
18 kg (without solution tank)
dimension
132 x 38 x 47 cm
capacity of solution tank
55 litres (square version) made of polyethylene
capacity of fuel tank
10 ltr (optional 20 ltr)
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 75 l/h (according to nozzle size used)
standard flow rate
40 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

Standard-units are designed to fog waterbased, non-flammable fogging solutions and suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

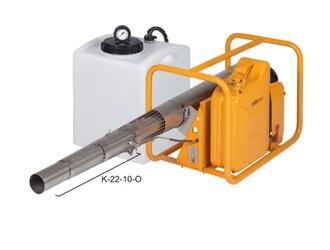

pulsFOG K-22-10-O stationary thermal fogger // small frame

for oil-based product application

empty weight
18 kg (without solution tank)
dimension
132 x 38 x 47 cm
capacity of solution tank
55 litres (square version) made of polyethylene
capacity of fuel tank
10 ltr (optional 20 ltr)
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 75 l/h (according to nozzle size used)
standard flow rate
40 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

O-units are designed to fog inflammable and non-flammable fogging solutions but not suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

pulsFOG K-22-20-STD stationary thermal fogger // large frame

for water-based product application

empty weight
46 kg
dimension
138 x 87 x 50 cm
capacity of solution tank
80 litres (tolerance 1-2 litres) made of stainless steel
capacity of fuel tank
10 ltr (optional 20 ltr)
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 75 l/h (according to nozzle size used)
standard flow rate
40 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

Standard-units are designed to fog waterbased, non-flammable fogging solutions and suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

pulsFOG K-22-20-O stationary thermal fogger // large frame

for oil-based product application

empty weight
46 kg
dimension
138 x 87 x 50 cm
capacity of solution tank
80 litres (tolerance 1-2 litres) made of stainless steel
capacity of fuel tank
10 ltr (optional 20 ltr)
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 75 l/h (according to nozzle size used)
standard flow rate
40 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

O-units are designed to fog inflammable and non-flammable fogging solutions but not suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

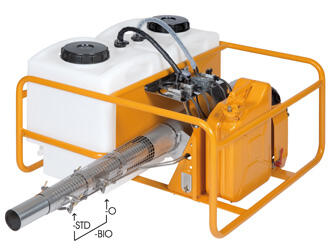

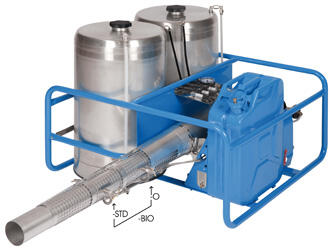

pulsFOG K-22-20-BIO stationary thermal fogger // large frame

the multi-talent for medium sized fogging

empty weight
42 kg
dimension
138 x 87 x 58 cm
capacity of solution tank
2 x 55 litres (square version) made of polyethylene
capacity of fuel tank
10 ltr (optional 20 ltr)
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 75 l/h (according to nozzle size used)
standard flow rate
40 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

The pulsFOG BIO System provides the following advantages
a) The successful application of heat sensitive biological ingredients (Bacillus thuringiensis, Juvenile hormones, Beauveria bassiana) and other chemical substances.
b) The fogging of wettable powder formulations without chocking and clogging the outlet of resonator.
c) The avoidance of fire hazard with highly combustible fogging liquids.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

pulsFOG K-30-20-STD stationary thermal fogger // small frame

for water-based product application

empty weight
22 kg (without solution tank)
dimension
151 x 41 x 49 cm
capacity of solution tank
55 litres (square version) made of polyethylene
capacity of fuel tank
20 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 120 l/h (according to nozzle size used)
standard flow rate
60 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

Standard-units are designed to fog waterbased, non-flammable fogging solutions and suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

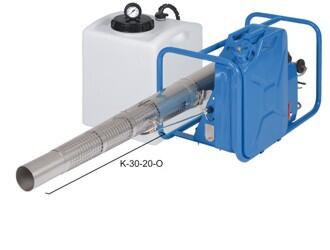

pulsFOG K-30-20 -O stationary thermal fogger // small frame

for oil-based product application

empty weight
22 kg (without solution tank)
dimension
151 x 41 x 49 cm
capacity of solution tank
55 litres (square version) made of polyethylene
capacity of fuel tank
20 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 120 l/h (according to nozzle size used)
standard flow rate
60 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

O-units are designed to fog inflammable and non-flammable fogging solutions but not suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

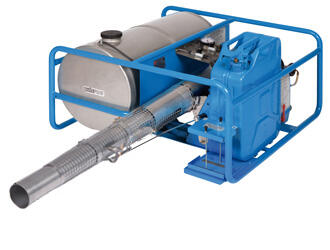

pulsFOG K-30-20-STD stationary thermal fogger // large frame

for water-based product application

empty weight
55 kg
dimension
151 x 87 x 50 cm
capacity of solution tank
80 litres (tolerance 1-2 litres) made of stainless steel
capacity of fuel tank
20 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 120 l/h (according to nozzle size used)
standard flow rate
60 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

Standard-units are designed to fog waterbased, non-flammable fogging solutions and suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

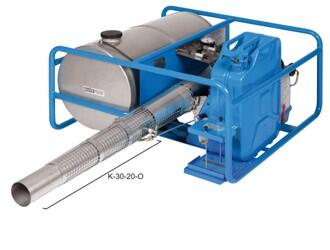

pulsFOG K-30-20-O stationary thermal fogger // large frame

for oil-based product application

empty weight
55 kg
dimension
151 x 87 x 50 cm
capacity of solution tank
80 litres (tolerance 1-2 litres) made of stainless steel
capacity of fuel tank
20 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 120 l/h (according to nozzle size used)
standard flow rate
60 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

O-units are designed to fog inflammable and non-flammable fogging solutions but not suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

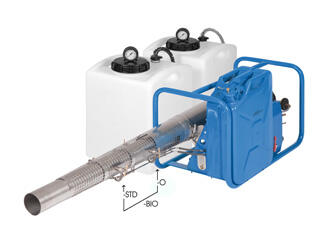

pulsFOG K-30-20-BIO stationary thermal fogger // small frame

heavy duty multi use stationary biological fogging

empty weight
22 kg (without solution tank)
dimension
151 x 41 x 49 cm
capacity of solution tank
2 x 55 litres (square version) made of polyethylene
capacity of fuel tank
20 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 190 l/h (according to nozzle size used)
standard flow rate
80 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

The pulsFOG BIO System provides the following advantages
a) The successful application of heat sensitive biological ingredients (Bacillus  thuringiensis, Juvenile hormones, Beauveria bassiana) and other chemical substances.
b) The fogging of wettable powder formulations without chocking and clogging the outlet of resonator.
c) The avoidance of fire hazard with highly combustible fogging liquids.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

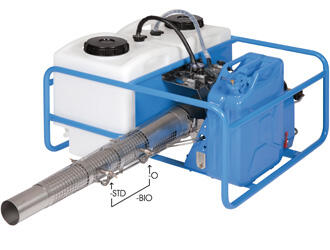

pulsFOG K-30-20-BIO stationary thermal fogger // large frame

robust heavy duty stationary fogging

empty weight
45 kg
dimension
160 x 97 x 77 cm
capacity of solution tank
2 x 55 litres (square version) made of polyethylene
capacity of fuel tank
20 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 190 l/h (according to nozzle size used)
standard flow rate
80 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)
optional
electrical starting device // remote control // turntable

Product Description

The pulsFOG BIO System provides the following advantages
a) The successful application of heat sensitive biological ingredients (Bacillus  thuringiensis, Juvenile hormones, Beauveria bassiana) and other chemical substances.
b) The fogging of wettable powder formulations without chocking and clogging the outlet of resonator.
c) The avoidance of fire hazard with highly combustible fogging liquids.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

pulsFOG K-30-20-BIO stationary thermal fogger // large frame

super heavy duty stationary biological fogging

empty weight
77 kg
dimension
160 x 97 x 94 cm
capacity of solution tank
2 x 65 litres (square version) made of stainless steel
capacity of fuel tank
20 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 190 l/h (according to nozzle size used)
standard flow rate
80 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 µm (oil) < 60 µm (oil/water) < 150 µm (water)
optional
electrical starting device // remote control // turntable

Product Description

The pulsFOG BIO System provides the following advantages
a) The successful application of heat sensitive biological ingredients (Bacillus  thuringiensis, Juvenile hormones, Beauveria bassiana) and other chemical substances.
b) The fogging of wettable powder formulations without chocking and clogging the outlet of resonator.
c) The avoidance of fire hazard with highly combustible fogging liquids.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 µm using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

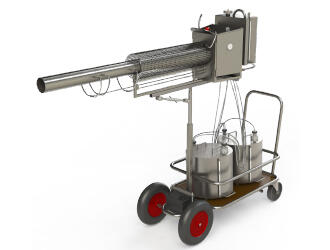

pulsFOG K-40 stationary thermal fogger

Big capacity means big advantages

total weight
108 kg
capacity of solution tank
2 fluid tanks of 50 liters. (100 or 150 L is optional)
Fog range (free output)
120 meters
material
Complete Stainless steel
performance of engine
125 HP / 79200 Kcal/h
starting device
Electric start 12 volt
flow rate
60 - 150 liter/h (according to nozzle size used)

Product Description

The biggest thermal fogging machine of its kind is now even better. With improved safety features and its widely known capacity and perfomance, the pulsFOG K-40 is the machine to help you get the best out of your products. The pulsFOG K-40 can disinfect up to 20.000 m3 per hour or treat 3 hectares with crop protection per hour. With this capacity you can deliver a uniform fog throughout the complete area, so every inch of surface gets the same treatment. The BIO-system (water cooling) lets you use biological crop protection. The revolutionairy depressurizing valve makes operating the pulsFOG K-40 safer and more reliable.

Close Details // Technical Data

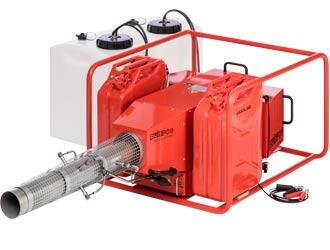

pulsFOG K-50 stationary thermal fogger

The powerful K-50 with 170 HP

empty weight
55 kg
wooden case (length x breadth x height)
185 x 86 x 61 cm
capacity of solution tank
2 x 55 litres (square version) made of polyethylene
capacity of fuel tank
2 x 20 litres
cubic capacity of engine
3050 cm3
max. engine power
128 kW (171 hp, 110.000 kcal/h)
max. fuel consumption
14 l/h
starting power
12 V DC (automotive battery, not included)
flow rate
60 - 400 l/h (according to nozzle size used)
standard flow rate
200 l/h
droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 µm (oil) / < 60 µm (oil/water) / < 150 µm (water)
standard features
Electric start with quick on-off function; Triple automatic cut-off device; Resonator elevating system; Detachable fuel tanks; Tubular frame

Product Description

Thermal fogging is the generation of ultra-fine droplets in a range of 1–50 µm using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (less residues, no penetration into the ground), e.g. in the field of publichealth, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data
