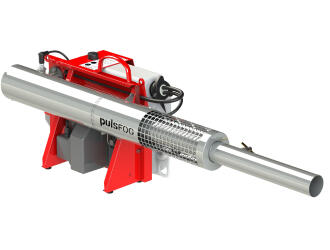

pulsFOG K-10-SP portable thermal fogger

the all-rounder for leightweight fogging

empty weight
7 kg
dimension
106 x 29 x 33 cm
capacity of solution tank
5 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
300 cm³
performance of engine
17,5 kW (24,1 hp, 15.300 kcal/h)
fuel consumption
1,9 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 35 l/h (according to nozzle size used)
standard flow rate
12 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects. The K-10-SP is registered at WHO (World Health Organization).

Close Details // Technical Data

pulsFOG K-10-SP-SAN portable thermal fogger

the termite terminator

empty weight
7,6 kg
dimension
130 x 29 x 33 cm
capacity of solution tank
5 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
300 cm³
performance of engine
8,75 kW (12,05 hp, 7.650 kcal/h)
fuel consumption
1,9 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
8 – 20 l/h (according to nozzle size used)
standard flow rate
8 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 15 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

The pulsFOG K-10-SP-SAN is a special construction for the sanitary sector: A bent fogging pipe simplifies the treatment of underground sewage-systems via the access gullies or the ventilation openings in the street. The pesticide-fog is carried over several hundred meters within the sewage-system due to the constantly existing airblast; thus controlling disease-causing organisms, vectors and other pests effectively. The bent fogging pipe is exchangeable with a straight fogging tube. The pulsFOG K-10-SP-ANTEATER is a special construction for the control of pests in the soil e.g. termites and leaf-cutting ants, provided registered liquid pesticides are applied. Ants and even mice in the soil are successfully controlled with the active ingredients permethrine and chlorpyrifos. These two special applications demand for adjusting the fogging performance and therefore, the fogging performance of a pulsFOG K-10-SP-SAN or ANTEATER is not to be compared with a standardized K-10-SP with 17,5 kW. This special construction of the K-10-SP-SAN or ANTEATER (and special adaptation for straight/ fogging) reduces the fogging performance to 8,75 kW.

Close Details // Technical Data

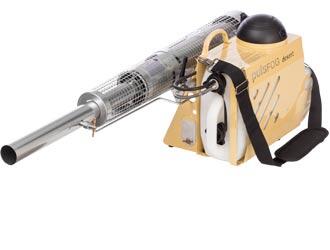

pulsFOG K-10-DESERT portable thermal fogger

perfectly armoured leight weight all-rounder

empty weight
7 kg
dimension
106 x 29 x 33 cm
capacity of solution tank
5 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
300 cm³
performance of engine
17,5 kW (24,1 hp, 15.300 kcal/h)
fuel consumption
1,9 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 35 l/h (according to nozzle size used)
standard flow rate
12 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects. The K-10-SP is registered at WHO (World Health Organization).

Close Details // Technical Data

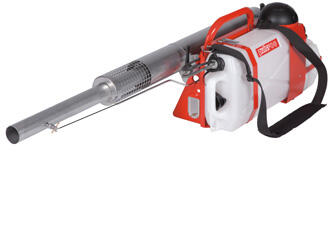

pulsFOG K-10-STD portable thermal fogger

for water-based product application

empty weight
8,5 kg
dimension
129 x 29 x 36 cm
capacity of solution tank
9 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
300 cm³
performance of engine
17,5 kW (24,1 hp, 15.300 kcal/h)
fuel consumption
1,9 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 35 l/h (according to nozzle size used)
standard flow rate
12 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

Standard-units are designed to fog waterbased, non-flammable fogging solutions and suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

pulsFOG K-10-O portable thermal fogger

for oil-based product application

empty weight
8,5 kg
dimension
129 x 29 x 36 cm
capacity of solution tank
9 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
300 cm³
performance of engine
17,5 kW (24,1 hp, 15.300 kcal/h)
fuel consumption
1,9 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
10 - 35 l/h (according to nozzle size used)
standard flow rate
12 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

O-units are designed to fog inflammable and non-flammable fogging solutions but not suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

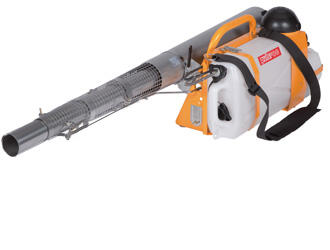

pulsFOG K-22-STD portable thermal fogger

for water-based product application

empty weight
10,5 kg
dimension
132 x 33 x 36 cm
capacity of solution tank
9 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
20 - 60 l/h (according to nozzle size used)
standard flow rate
30 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

Standard-units are designed to fog waterbased, non-flammable fogging solutions and suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

pulsFOG K-22-O portable thermal fogger

for oil-based product application

empty weight
10,5 kg
dimension
132 x 33 x 36 cm
capacity of solution tank
9 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
20 - 60 l/h (according to nozzle size used)
standard flow rate
30 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

O-units are designed to fog inflammable and non-flammable fogging solutions but not suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

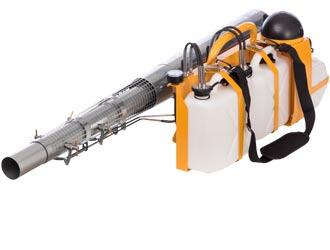

pulsFOG K-22-BIO portable thermal fogger

the all-rounder for medium weight portable fogging

empty weight
11 kg
dimension
132 x 33 x 36 cm
capacity of solution tank
2 x 5 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
1000 cm³
performance of engine
37,4 kW (50,8 hp, 32.200 kcal/h)
fuel consumption
3,8 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
20 - 60 l/h (according to nozzle size used)
standard flow rate
30 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 150 ?m (water)

Product Description

The pulsFOG BIO System provides the following advantages
a) The successful application of heat sensitive biological ingredients (Bacillus  thuringiensis, Juvenile hormones, Beauveria bassiana) and other chemical substances.
b) The fogging of wettable powder formulations without chocking and clogging the outlet of resonator.
c) The avoidance of fire hazard with highly combustible fogging liquids.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

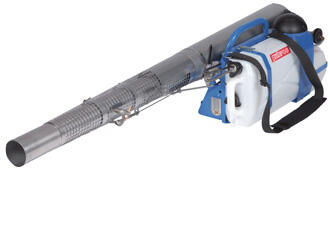

pulsFOG K-30-STD portable thermal fogger

for water-based product application

empty weight
13,5 kg
dimension
149 x 36 x 35 cm
capacity of solution tank
9 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 120 l/h (according to nozzle size used)
standard flow rate
60 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 100 ?m (water)

Product Description

Standard-units are designed to fog waterbased, non-flammable fogging solutions and suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.

Close Details // Technical Data

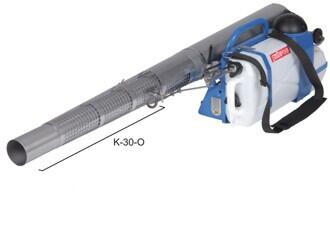

pulsFOG K-30-O portable thermal fogger

for oil-based product application

empty weight
13,5 kg
dimension
149 x 36 x 35 cm
capacity of solution tank
9 ltr
capacity of fuel tank
2 ltr
cubic capacity of engine
2000 cm³
performance of engine
75 kW (101,6 hp, 64.400 kcal/h)
fuel consumption
7,6 l/h
automatic ignition
electronic ignition coil fed by 4 x dry batteries = 6V
starting device
manual quick start
flow rate
30 - 120 l/h (according to nozzle size used)
standard flow rate
60 l/h
Droplet size spectrum (depending on oil viscosity and nozzle size used)
< 25 ?m (oil) < 60 ?m (oil/water) < 100 ?m (water)

Product Description

O-units are designed to fog inflammable and non-flammable fogging solutions but not suspensions.

Thermal fogging is the generation of ultra-fine droplets in a range of 1-50 ?m using thermo-pneumatic energy. Liquid substances are vaporized in the unit and form ultra-fine aerosols by condensing on contact with cool ambient air. Thermal fogging is used for any pest control task where active substances should be uniformly distributed even in inaccessible places, without leaving undesirable residues. The fogging technique is the solution for treating large areas and spaces with a minimum quantity of pesticide solution, less operational work and with little harm to the environment (lessresidues, no penetration into the ground), e.g. in the field of public health, stock protection, plant protection, disinfection, decontamination, deodorization and cinema effects.
